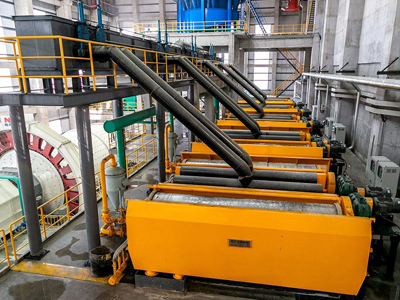

Magnetic separator is widely used in different kind mineral processing, including metallic minerals such as iron ore, chrome ore, ilmenite, and non-metallic minerals for iron removing such as quartz processing, kaolin processing, etc. Prominer supplies various types of magnetic separators for different applications, including dry drum magnetic separator, wet drum magnetic separator, LIMS, HIMS, etc. With the processing material details, Prominer can conduct relative magnetic separation test and recommend proper magnetic separator.

Dry Drum Magnetic Separator Advantages:

  1. advanced magnetic circuit design, deep magnetic effective depth and high recovery.
  2. Simple and compact structure, strong magnetic force.
  3. Easy to maintain, easy installation, reliable performance.
  4. Stable and reliable driving device, no malfunction or breakdown for a long time.

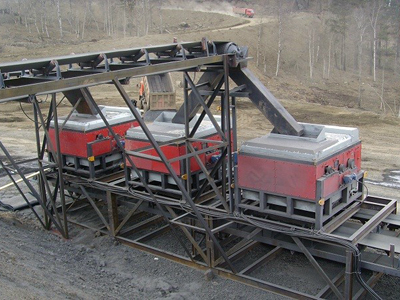

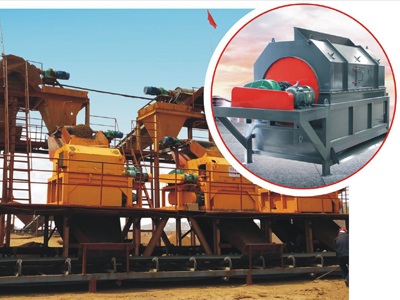

CTL series Dry Drum Magnetic Separator:

  1. Used for the preliminary separation of low grade ore to increase the grinding grade and lower ore processing cost.
  1. Used for the processing of ore tailings and recollection of the relatively concentrated tailings from the dry sections of the tailing pond.
  2. Used for the purification of the dried pyrite cinder.
  3. Used for the economic and effective iron removal of non-magnetic materials.
  4. Used for the concentrate purification operation in magnetic separation factories to remove the lean inter-growth and gangue from the concentrate to improve its grade and the value-added of the products.

Dry Drum Magnetic Separator Technical Specifications:

Model Drum Size       Speed Magnetic Intensity Capacity Dimension Power
D(mm) L(mm) (r/min) (GS) (t/h) (mm×mm×mm) (kw)
CTL0816 800 1600 0-63 1000-3500 35-55 3053×1295×1671 7.5
CTL0818 800 1800 0-63 55-70 3266×1295×1672 11
CTL0821 800 2100 0-63 70-85 3936×1295×1673 15
CTL0824 800 2400 0-63 85-100 4235×1295×1674 18.5
CTL1021 1050 2100 0-50 100-130 4030×1545×1850 18.5
CTL1224 1200 2400 0-50 115-150 4720×1545×2064 22
CTL1230 1200 3000 0-50 130-180 5320×1545×2064 22
