Flotation Cells

Prominer can provide SF series self-priming flotation machine and XCF/KYF series pneumatic flotation cell which are mainly used. for the recovery and upgrading of sulfide ores such as cooper ore, lead & zinc ore, gold ore, silver ore, nickel ore. And it can be also used in some non-sulfide ores include fluorite, graphite, quartz, tungsten, lithium, tantalum, tin and coal.

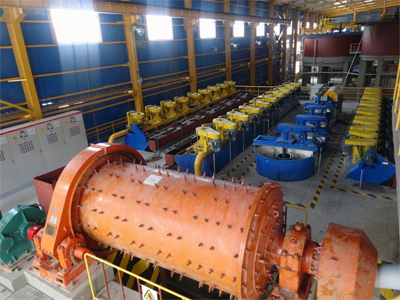

Our flotation cells are cell to cell type flotation machine which always combine several sets together as roughing stage, cleaning stage or scavenging stages.

For ensuring the performance our flotation system, the suitable chemical reagent system also very important. Based on the function of chemical reagent, it can be classified as collectors, frothers and modifiers.

Technical Specifications of SF Flotation Cells:

Model	Effective	Size of Tank	Impeller	Impeller	Capacity	Motor	Air flow	Single Tank
	Volume	(L x W x H)	Diameter	Speed (r/min)	(m³/min)	Power	sucked	Weight
	(m³)	(mm)	(mm)			(kw)	(m³/㎡.min)	(kg)
SF-0.7	0.7	820x900x950	350	400	0.3-0.9	3/1.1	0.8-1	805
SF-1.2	1.2	1100x1100x1100	450	312	0.6-1.2	5.5/1.1	1-1.2	1373
SF-2.8	2.8	1700x1600x1150	550	268	1.5-3.5	11/1.5	1-1.2	2138
SF-4	4	1850x2050x1200	650	220	2月4日	15/1.5	1-1.2	2582
SF-8	8	2200x2900x1400	760	191	4月8日	30/1.5	0.9-1	4129
SF-10	10	2200x2900x1700	760	191	5月10日	30/1.5	0.9-1	4486
SF-16	16	2850x3800x1700	760	191	5月16日	30x2/1.5	0.9-1	8320
SF-20	20	2850x3800x2000	760	191	5月20日	30x2/1.5	0.9-1	9828

Technical specifications of XCF/KYF Series Flotation Cells

Model	Effective	Size of Tank	Impeller	Inlet Air Pressure (Kpa)	Capacity	Power	Airflow Setting (m³/ ㎡.min)	Single Cell
	Volume	(L x W x H)	Diameter		(m³/min)	(kw)		Weight(kg)
	(m³)	(m)	(mm)
XCF/KYF-3	3	1.60x1.60x1.40	0.54/0.48	>14	0.7~1.5 / 0.7~3	7.5/5.5	0.05~1.4	2172/2074
XCF/KYF-4	4	1.80x1.80x1.50	0.62/0.55	>15	1~2 / 1~4	11/7.5	0.05~1.4	2375/2100
XCF/KYF-6	6	2.05x2.05x1.75	0.62/0.55	>17	1~3 / 1~6	18.5/11	0.05~1.4	3545/3278
XCF/KYF-8	8	2.20x2.20x1.95	0.72/0.63	>19	2~4 / 2~8	22/15	0.05~1.4	4142/3857
XCF/KYF-10	10	2.40x2.40x2.10	0.76/0.66	>20	3~5 / 3~10	30/22	0.05~1.4	4894/4334
XCF/KYF-16	16	2.80x2.80x2.40	0.86/0.74	>23	4~8 / 4~16	37/22	0.05~1.4	6928/7545
XCF/KYF-20	20	3.00x3.00x2.70	0.91/0.78	>25	5~10 / 5~20	45/37	0.05~1.4	9200/8240
XCF/KYF-24	24	3.10x3.10x2.90	0.93/0.80	>27	6~12 / 6~24	55/37	0.05~1.4	10819/9820
XCF/KYF-30	30	3.50x3.50x3.03	0.88/0.90	>31	7~15 / 7~30	55/45	0.05~1.4	14810/13820
XCF/KYF-40	40	3.80x3.80x3.40	1.05	>32	8~19 / 8~38	75/55	0.05~1.4	18790/17097
XCF/KYF-50	50	4.40x4.40x3.50	1.20/1.03	>33	10~25 / 10~40	90/75	0.05~1.4	22000
XCF/KYF-70	70	Φ 4.30x4.10	1.12	>35	13~50	90	0.05~1.4	26200
