The hydrocyclone takes water as medium to classify and separate mineral particles in the centrifugal force field with tens to hundreds of times acceleration of gravity. According to its different application, it can be divided into grinding classification hydrocyclone, ultrafine classification hydrocyclone, desliming hydrocyclone, concentrated hydrocyclone and so on.

Hydraulic cyclone has the features like low equipment cost, easy assembling and dismantling, convenient maintenance, small floor space required, low capital expenditure, large processing capacity of unit volume, fine classifying grain size, high classifying efficiency, small quantity and short time of staying of the ore pulp  in the cyclone, and easy operation of shutdown.

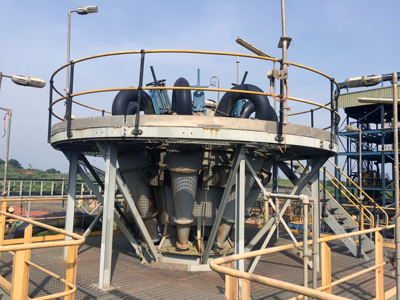

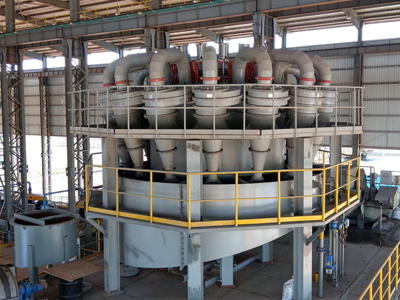

Used for classifying the ore pulp in the grinding loop. A combined unit is usually selected by connecting several units of cyclone in parallel. Its classifying fineness and processing capacity are greatly affected by the diameter of upper cylinder, pressure at the inlet of ore pulp, and the concentration of ore pulp. Therefore, it has a large fluctuation of process.

Hydrocyclone Advantages:
1、Capable of separating fine material from liquid
2、Can separate liquid from liquid when large differences in specific gravity are present
3、Accepts variation in feed solids content
4、Consistent underflow densities
5、Ajustable underflow densities
6、-lined standard; ceramic lining optional

Hydrocyclone Technical Specifications:

Specifi-cations (mm)

Internal diameter

(mm)

Inlet diameter

 (mm)

Overflow pipe diameter

 (mm)

Underflow diameter

 (°)

Cone-angle

mm)

Maximum feeding particle size

(pa)

Feed pressure

(m³/h)

Capacity

(µm)

Separated particle size

Dimension  (kg)

Wei-ght

(mm)

L

(mm)W (mm)

H

FX-660 660 187,167 180,200,

220,240

80,110,150 20 16 0.03-0.4 250-360 74-220 1215 850 2720 950
FX-500 500 130

120

130,140,

160,180,

220

35,45,50,65,

70,80,90,100

25 10 0.03-0.4 140-220 74-200 951 718 1825 416
20 74-200 850 623 1825 490
10 74-150 951 718 2280 556
FX-350 350 80 80,90,

105,115,

120

30,35,40,45,

50,60,70

25 6 0.03-0.4 60-105 50-150 530 413 1411 135
20 50-150 530 413 1411 155
15 50-120 530 413 1674 230
FX-300 300 64

75

65,80,

100,120

20,25,30,

35,40

20 5 0.03-0.4 45-90 50-150 530 410 1305 88
15 40-100 563 410 1490 169
FX-250 250 55

74

80

60,75,80,

100,120

16,18,20,25,

30,35,40

20 3 0.05-0.4 40-65 40-100 563 534 1178 63
15 40-100 548 390 1057 120
10 30-100 548 415 1380 123
FX-200 200 48 40,50,

55,65

16,20,24,

28,32

20 2 0.05-0.4 25-40 40-100 548 307 1025 36
15 30-100 320 307 1114 64
FX-150 150 36 30,35,

40,45

8,10,12,14,

16,18,20,22

20 1.5 0.05-0.4 11-20 30-74 320 270 682 22
15 30-74 252 349 899 20
8 20-74 290 295 1267 60
FX-125 125 26 25,30,

35,40

8,10,12,

14,16,18

17 1 0.05-0.4 8-15 20-100 280 185 617 10
8 20-74 210 240 973 12
FX-100 100 23 20,25,

30,40

8,10,12,

14,16,18

20 1 0.05-0.4 5-12 20-100 250 210 525 8
15 10-100 257 210 575 5
8 10-74 257 210 829 6
FX-75 75 13 15,17,20 6,7,8,10,12 15 0.6 0.1-0.5 2-5 20-74 240 230 459 4
7 5-40 240 230 700 7
FX-50 50 9 11,13,

15,18

3,6,8,10,12 15 0.3 0.1-0.5 1.5-3 10-74 160 152 325 2
6 5-30 160 152 550 2.5
FX-25 25 5 5,6,7,8 2,3,4,5 5 0.2 0.1-0.5 0.3-1 3-10 160 152 587 0.8
3 2-10 120 110 576 1.4
FX-10 10 2 2,3,4 1,2 4 0.1 0.1-0.1 0.05-1 1-5 60 34 140 0.5
