Portable Crusher

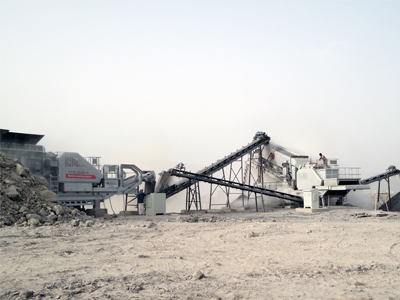

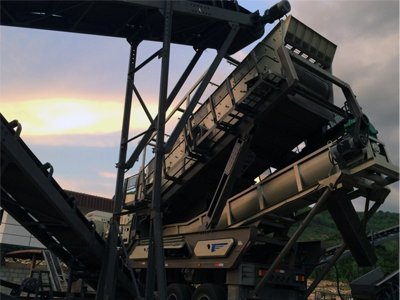

Wheel-type Mobile Crusher is, also known as mobile crushing station, developed based on years of independent research and manufacturing experience of mobile crushers. In combination with user demands, it is optimized and innovated on structural design, equipment configuration and combined application, so as to realize more flexible combinations, greatly widening the application fields and truly realizing the approaching treatment of materials. It equipment with excellent mobility on all types of roads. The units are popular crushing units around the world as these machines can be towed to the quarry for installation and thus aggregate transportation costs can be saved. The Primary (Jaw Crusher) and the Secondary (Cone Crusher) are mounted on independent chassis. The Conveyors are mounted on skids and can be easily assembled /dismantled. The Hoppers are of bolted design and can be easily dismantled and carried. These wheel mounted units can be rapidly erected and dismantled on site, giving maximum degree of

utilization and avoid wastage of steel and civil structure’s on relocation.

Portable Crusher Working Principle

A K Wheel-type Mobile Crusher is composed of the frame assembly, automobile components, hosts & accessory equipment, power system and hydraulic electronic control system. When moving, the mobile crusher is hooked on a trailer and then move by virtue of its wheels. During installation, with the external power, the hydraulic cylinder can get controlled by the electronic control system to finish equipment installation. During operation, with external power, motors of hosts and accessories work to drive the equipment to work. Usually, materials are sent from the hopper or by belt conveyors to the hosts for crushing and screening. After being processed, finished products are transported by belt conveyors, too.

Portable Crusher Features:

Quick Entrance to Operation; Flexibility Saving More Money

Compared with a fixed production line, Mobile Crusher has a shorter engineering period and rapider transition, which not only reduces the investment risk and opportunity cost of the investors, but also avoids the demolition and construction after the end of project, making it more economical and environmental. In addition, the mobile crusher has excellent value-holding capacity, so that the investor can rapidly invest in a new project, or sell the mobile crusher to get money, thus reducing the investment cost.

Hydraulic Centralized Control Makes Operation & Maintenance Simpler

All actions are controlled by intensified hydraulic system so that the operator can simply and rapidly set the operating actions of the mobile crusher; in consideration that the widely used hydraulic control devices will require certain machine maintenance, it adopted centralized lubrication mode, and the operator can rapidly complete the maintenance on the road directly. Therefore, the operation and maintenance management will greatly save the labor cost.

Portable Crusher Technical Parameters：

Primary crushing station:

Secondary crushing station:

Integrated mobile crushing:
