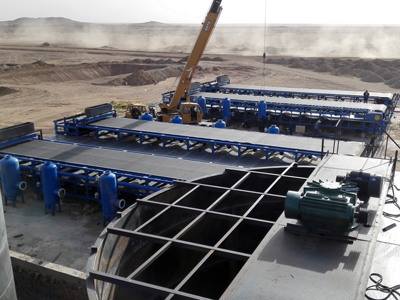

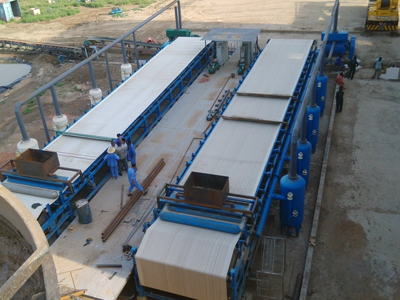

Belt Vacuum Filter

Belt vacuum filtering machine with setting chamber, also called rubber belt vacuum filtering machine, is a kind of new, highly efficient and continuously operational solid-liquid separating equipment, It has been widely used in sectors such as metallurgy, mining, chemical engineering, paper making, food, pharmacy and environment protection.

The fact proves that Rubber Belt vacume Filtering Machine has advantages such as high filtering efficiency, large production capacity, good cleaning results, broad application scope, simple operation, stable running and convenient maintenance.

Belt Vacuum Filter Features:

Circular rubber belt adopts adhesive structure of wave-shaped skirt brim and flat rubber belt with excellent flexibility. It has low cost and long life. And also the skirt brim can be replaced.

There is a circular friction belt between vacuum chamber and rubber belt that is sealed, lubricated and cooled with water. The vacuum sealing is dependable. The circular friction belt has small friction resistance, long service life and is convenient and swift to replace.

Rubber belt adopts air bag or water film supporting. The rubber belt floats on air bag or water film, reducing moving resistance and good for prolong the service life of rubber belt.

Rubber belt supports filter fabrics, takes vacuum pumping power, conveys power efficiency and takes weight. It also slides on vacuum chamber. Filter fabrics does not contact vacuum chamber and has longer service life.
It realizes continuous operation, filtering and rinsing, etc. It can maintain stable vacuum, lower water content of filter cake and is good for stabilizing operational technical conditions.

There are fewer perishable parts, lower malfunction ratio, longer reliable continuous running term and larger amount of materials to deal with.

Belt Vacuum Filter Technical Specifications:

model	filter area(㎡)	filter room number	Filter plate specification	filter sample thickness(mm)	filter chamber volume(m³)	filter pressure(Mpa)	anchor center(mm)	boundary dimension(LWH）mm	Motor power(kw)	weight(kg)
XMAZ800U	20	20	800×800×55	25	0.24	0.5	2265	3215×1320×1160	2.2	2073
XMAZ800U	30	30			0.37	0.8	2815	3765×1320×1160		3090
XMAZ800U	40	40			0.49	0.8	3365	4315×1320×1160		3380
XMAZ800U	50	50			0.62	1	3915	4865×1320×1160		3090
XMAZ800U	60	60			0.74	1	4465	5415×1320×1160		4070
XMAZ800U	70	70			0.87	1.6	5015	5965×1320×1160		4360
XMAZ800U	80	80			1	1.6	5565	6515×1320×1160		4700
XMAZ1000U	100	62	1000×1000×60	30	1.48	0.5-1.6	5020	6110×1460×1360	3	6200
XMAZ1000U	120	75	1000×1000×60		1.8		5800	6890×1460×1360		6710
XMAZ1250U	150	58	1250×1250×65		2.26		5390	6920×1850×1620		11800
XMAZ1250U	180	69			2.7		6100	7630×1850×1620		12700
XMAZ1250U	200	79			3.02		6620	8150×1850×1620		13300
XMAZ1250U	220	84			3.29		7080	8610×1850×1620		1390
