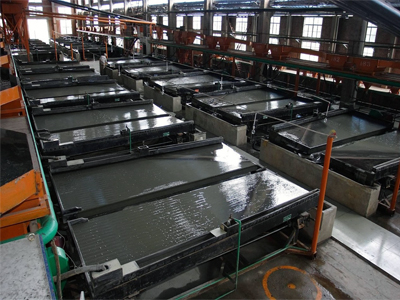

Shaking Table

Shaking table is one type of main equipment of gravity concentration, which is widely used in heavy minerals recovering project such as iron , ilmenite, chromite, pyrite, tungsten ore, tin ore, tantalum-niobium ore, placer gold, alluvial sand, coastal sand, gravel mine, zircon and rutile as well as other nonferrous metals, rare metals and nonmetallic minerals with adequate gravity difference. The shaker effective recycling granularity scope is 2-0.037 millimeters.

Prominer’s shaking table is characterized by high rich ore ratio, high separating efficiency, easiness to take charge and convenient adjustment. Keep table surface operate balanced even though changing cross fall and stroke. The springs with compact structure are placed in the table. The final concentrated ore and gangue can be obtained simultaneously.

Shaking Table Technical Specifications:

Model and Specification		6-S/LY	6-S/LY	6-S/LY	LY
Table Size（mm） Length×Feed width×Concentrate width		4520×1850×1560	3000×1620×1100	2100×1050×850	1100×500×430
Selective area(㎡)		7.67	4.08	2	0.51
Feed size(mm)	coarse sand	1-2.5	0.6-1.5	0.4-0.8	0.1-0.2
	fine sand	0.8-1.2	0.3-0.8	0.2-0.5	0.05-0.1
	slurry	0.3-0.6	0.2-0.4	0.1-0.2	0.03-0.05
Water consumption（t/h）		0.5～3.5	0.3～1.5	0.2～1	0.1～0.5
Stroke（mm）		8～36	10～30	12～28	9～17
Jig frequency（q/m）		240～380	240～420	250～450	280～460
Cross fall（°）		0°～5°	0°～8°	0°～10°	0°～10°
Motor	Model	Y70L-4	Y100L-4	Y90L-4	Y80L-4
	Power(kw)	1.1	1.1	1.1	0.55
	Revolving speed（r/min）	1400	1400	1400	1400
V-belt（mm）		A-2000	A-1033	B-2007	A-1245
Overall Dimension(Length*Width*Height)mm		5630×1850×900	4075×1320×780	3040×1050×1020	1530×500×800
Weight(kg)		650	550	350	150
Notes: The above technical parameters based on stationary type shaking table, are for your reference only.
